The City of Redmond is conducting a bus and rail integration planning effort for the future light rail extension to Downtown Redmond. Sound Transit, the agency responsible for expanding regional high-capacity transit, is expected to extend its East Link light rail line to Downtown Redmond by 2024. The 3.7-mile, two-stop extension, planned under the Sound Transit 3 expansion program, was identified as at-grade and elevated line. The extension would continue northward from Overlake, the area best known as Microsoft’s main campus in Redmond, following the eastern side of SR-520 toward Redmond Way and then turn westward to Downtown Redmond. The extension is expected to generate between 7,000 and 9,000 daily riders and cost something on the order of $949 million to $1.016 billion.

Sound Transit 3 light rail extension of East Link to Downtown Redmond. (Sound Transit)
Sound Transit 3 light rail extension of East Link to Downtown Redmond. (Sound Transit)

In January, Redmond published four alternative station concepts for its future downtown stop and solicited feedback from the public. That outreach effort included an online survey and a public open house that garnered more than 400 people to share their views on the concepts. Two of the concepts would include options for an elevated station as opposed to the at-grade proposal that Sound Transit put forward in its Sound Transit 3 plan. The other two options would be in line with Sound Transit’s at-grade preference.

The conceptual station locations are only about four blocks apart centered on the blossoming Redmond Central Connector–an open space and trail project–in the city center. The western options would locate the downtown station between Leary Way NE and 161st Ave NE while the eastern options would locate the station between 166th Ave NE and 164th Ave NE.

East and west concept station locations in Downtown Redmond. (Google)
East and west concept station locations in Downtown Redmond. (Google)

Concept 1: At-Grade West Station

The first concept would be an at-grade station located between Leary Way NE and 161st Ave NE. The tracks and station would be constructed on the south side of the Redmond Central Connector and may require some straightening out of the trail to accommodate the light rail facilities. Adjacent to the station, a new bus pick-up and drop-off area would be constructed to make transfers between rail and bus quick and easy. A portion of the pick-up and drop-off area could be built into an island with some public parking, which currently exists today. Additional features and facilities would include landscaping, fences along the railway, a maintenance facility and power house, plaza space, and layover bays for buses.

Concept 1 area plan. (City of Redmond)
Concept 1 area plan. (City of Redmond)

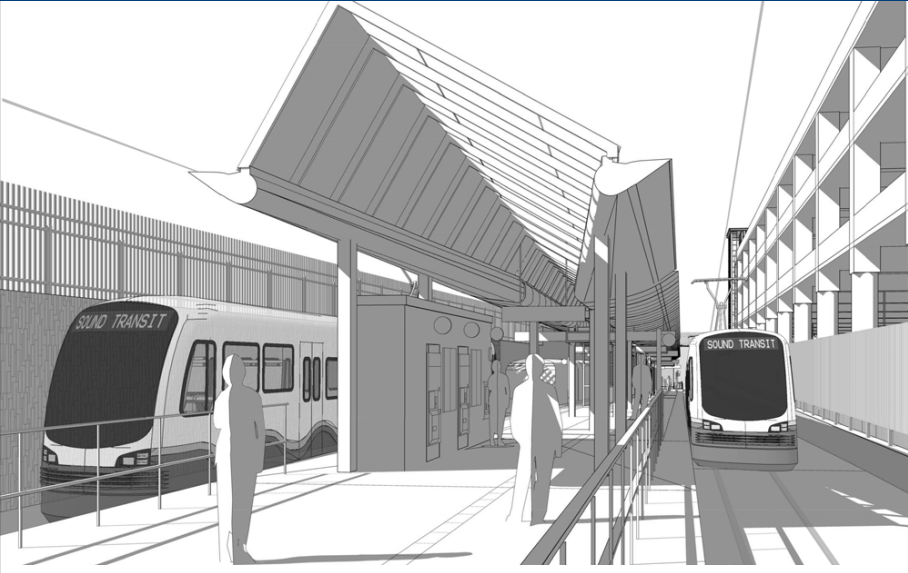

Concept 1 rendering. (City of Redmond)
Concept 1 rendering. (City of Redmond)

Concept 2: Elevated West Station

Similar to Concept 1, the second concept would locate a station between Leary Way NE and 161st Ave NE with many of the same features. The primary difference is that the station would be elevated with pylons extending the railway over more real estate. However, space below the elevated railway could still be used for open space uses. Some of the Redmond Central Connector trail might need to be moved to better align with the station and preserve green space.

Concept 2 area plan. (City of Redmond)
Concept 2 area plan. (City of Redmond)
Concept 2 rendering. (City of Redmond)
Concept 2 rendering. (City of Redmond)

Concept 3: Elevated East Station

The third concept would be an at-grade station located between 164th Ave NE and 166th Ave NE. The tracks and station would be constructed on the area now serving as the Redmond Central Connector trail. In effect, the trail would be absorbed into the station plaza and then become trail again at either end of the station area. Adjacent to the station, new bus pick-up and drop-off areas would be added on NE 76th St, 164th Ave NE, and Cleveland St to facilitate easy transfers between rail and bus. Additional features and facilities would include landscaping, a maintenance facility and power house, and layover space for buses.

Concept 3 area plan. (City of Redmond)
Concept 3 area plan. (City of Redmond)
Concept 3 rendering. (City of Redmond)
Concept 3 rendering. (City of Redmond)

Concept 4: At-Grade East Station

Similar to Concept 3, the fourth concept would locate a station between 164th Ave NE and 166th Ave with many of the same features. The primary difference is that the station would be at-grade, which could create some additional constraints for the Redmond Central Connector trail. East of the station, the railway tracks would need to be quickly tightened up to leave space for the trail and green space as a buffer.

Concept 4 area plan. (City of Redmond)
Concept 4 area plan. (City of Redmond)
Concept 4 rendering. (City of Redmond)
Concept 4 rendering. (City of Redmond)

Tradeoffs

Each concept comes with obvious trade offs, which are summarized as follows:

  • Concept 1: This option could significantly reduce the amount of open space, modestly increase noise impacts, modestly increase impervious surfaces, minimize visual impacts, provide consolidated and logical bus stop locations, increased impact to the Redmond Central Connector, induce collisions, and more directly serve the densest districts in the city center but incentivize less new transit-oriented development (TOD) potential in a quarter-mile.
  • Concept 2: This option could cast shadows and create modest visual impacts, minimize noise impacts, maintains a maximum amount of open space, modestly increase impervious surfaces, provide consolidated and logical bus stop locations, increased impact to the Redmond Central Connector, eliminate collisions, and more directly serve the densest districts in the city center but incentivize less new transit-oriented development potential in a quarter-mile.
  • Concept 3: This option could cast shadows and create modest visual impacts, minimize noise impacts, maintains a maximum amount of open space, greatly increase impervious surfaces, provide dispersed and less coherent bus stop locations, reduced impact to the Redmond Central Connector, eliminate collisions, and less directly serve the densest districts in the city center but incentivize more new transit-oriented development potential in a quarter-mile.
  • Concept 4: This option could significantly reduce the amount of open space, modest increase noise impacts, greatly increase impervious surfaces, minimize visual impacts, provide dispersed and less coherent bus stop locations, reduced impact to the Redmond Central Connector, induce collisions, and less directly serve the densest districts in the city center but incentivize more new transit-oriented development potential in a quarter-mile.

Feedback and Next Steps

Redmond received a lot of feedback on the concepts. More than 400 people participated through the City’s online survey and open house. Far and away, comments from the public heavily favored Concept 3 (elevated east station), which would put the station a little bit south and eastward of the city’s burgeoning residential and mixed-use heart. Rounding out second place was Concept 2 (elevated west station), which is similar, but would put the station much closer to the urban heart of Downtown Redmond. Citing mobility and safety as their top two driving factors for determining station location, respondents appear to believe that Concept 3 would best achieve those goals. Transit access and land use/urban design greatly lagged behind as priorities for a downtown station with both barely cracking 20%. Perhaps the clearest message by respondents was that grade-separated elevated rail is the standard that nearly all hope Sound Transit will deliver.

QuestionSummery Results
Which station area concept do you prefer overall?Concept 3: East Elevated: 222 (54%), Concept 2: West Elevated: 117 (29%), Concept 4: East At Grade: 41 (10%), Concept 1: West At Grade: 28 (7%)
What about it made it your first choice? Select all that apply.Mobility: 322 (32%), Safety: 274 (27%), Transit access: 209 (21%), Land use and urban design: 200 (20%)
What is your top priority?Mobility: 126 (33%), Safety: 118 (30%), Transit access: 72 (19%), Land use and urban design: 71 (18%)
Why are you interested in this topic? Select all that apply.I travel using a mode other than transit to/from/through Downtown: 224 (25%), I take transit to/from/through Downtown: 185 (20%), I live elsewhere in Redmond: 161 (18%), I work elsewhere in Redmond: 121 (13%), I live in Downtown: 114 (13%), I own property in Downtown: 65 (7%), I work in Downtown: 35 (4%), I own a business in Downtown: 1 (<1%)
Top ten topics raised in open- ended responses1. Mobility in Downtown (all modes)
2. Safety at/near the station
3. Transit access – bus and rail
4. Station design and amenities
5. Transit parking near station
6. Redmond Central Connector impacts
7. Urban design of station and guideway
8. Retaining green space in Downtown
9. Impacts to residents (primarily along Cleveland)
10. Noise impacts
Other topics raised in open- ended responses, in descending order of frequencyUnderground option, Other station location, Public parking impacts, Bus transit operations, Cost, Solar access and natural light, Transit-oriented development, Future extension of light rail, Station security, Construction impacts, Sustainability, Redmond Central Connector extension through SR-520 interchange, Pollution, Other alignment to Downtown, Economic development, Other transit technologies, Health, Business displacement

The Redmond City Council will review the feedback and analysis generated by planning effort to make a recommendation on a preliminary preferred station area concept. The Redmond City Council will take its first review of the subject on Tuesday (February 28th). Redmond will refine the concepts and eventually submit a recommendation to the Sound Transit to help inform the station planning by the agency anticipated to begin in the next few years.
